G125K-LE260 Liquid-Cooled Energy Storage Cabinet is an all-in-one C&I battery energy storage system with an integrated 130.5kW PCS, purpose-built for peak-valley arbitrage, demand management, PV self-consumption and backup power. It combines 5 battery packs of 166.4V/314Ah in series (1P260S configuration), delivering a rated voltage of 832V, a rated energy of 261kWh, and a wide voltage range of 728~936V — a complete, plug-and-play DC-to-AC block that installs on site with minimal wiring.
At its core are 314Ah large-format LFP (lithium iron phosphate) cells with 157A standard charge/discharge current at a 0.5C rate, meaning a full 261kWh charge or discharge in about two hours — well matched to daily peak-valley cycling. The system delivers up to 8,000 cycles (EOL 70%, 90% DOD) — roughly 30% longer service life than conventional 6,000-cycle systems — significantly lowering the levelized cost of energy (LCOE) across its lifetime.
Unlike air-cooled cabinets, G125K-LE260 adopts intelligent liquid-cooling thermal management with an ethylene glycol / water (50%:50%) coolant loop. Liquid cooling keeps cell temperature difference within a tight band, supports stable operation from -20℃ to 50℃ at up to 95% RH, and slows capacity fade — a decisive advantage in hot climates such as the Middle East, Africa and Southeast Asia.

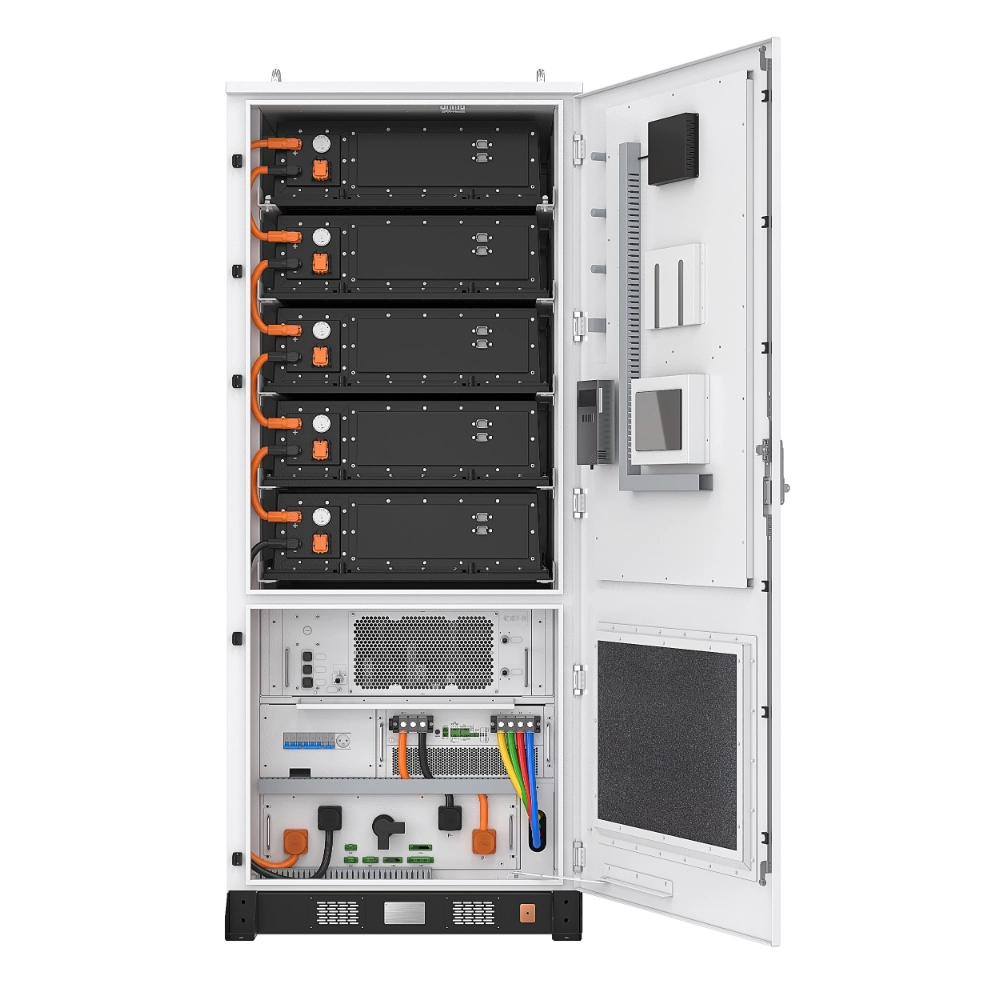

The IP54 enclosure integrates the battery cluster, 130.5kW PCS, BMS, aerosol fire-suppression system with temperature and smoke detection, and thermal management in a compact 970×1420×2320mm footprint weighing ≤3,000kg. Factory pre-assembled and tested, it requires only electrical connections on site. With RS485 / CAN communication, it integrates seamlessly with mainstream inverters and EMS platforms for remote monitoring and multi-cabinet paralleling for larger capacities.
| Model number: | G125K-LE260 |
| Type: | 261kWh |
| Battery cell: | LFP314Ah |
| Battery pack : | 166.4V314Ah |
| Rated voltage(V) : | 832V(5-module series) |
| Rated energy(kWh): | 261kWh |
| Voltage range(V): | 728~936 |
| Combination method: | 1P260S |
| Rated power(kW): | 130.5 |
| Rated charge and discharge rate : | 0.5P |
| Standard charge and discharge current : | 157A/157A |
| Size: W*D*H (mm): | 970*1420*2320 |
| Weight (kg): | ≤3T |
| Level: | IP54 |
| Operating temperature range [°C]: | -20~50°C |
| Relative humidity: | RH≤95% |
| Altitude (m) : | <2000m |
| Cooling method: | Liquid cooling |
| Coolant: | Ethylene glycol: aqueous solution (50%v: 50%w) |
| Number of cycles: | EOL70% 8000 times DOD90% |
| Fire protection system : | Aerosol |
| Detector : | Warmth sensation, smoke sensation |
