Lithium Battery Pack 51.2V 314Ah 16kWh | 51.2V 200Ah 10kWh | High Voltage Rack-Mounted for Home Energy Storage

Industry and Commerce

Reliable High-Voltage Rack-Mounted Lithium Battery for Residential & C&I Storage

Our GHS series lithium battery packs are designed for long-lasting performance and seamless integration. With a cycle life exceeding 6,000 cycles at 90% DOD, they deliver over 15 years of design life, ensuring stable operation throughout the system’s lifetime. The built‑in CAN communication ensures broad compatibility with leading inverter brands such as Growatt, Solis, Goodwe, Sol‑Ark, SRNE, and DEYE, making system integration simple and reliable.

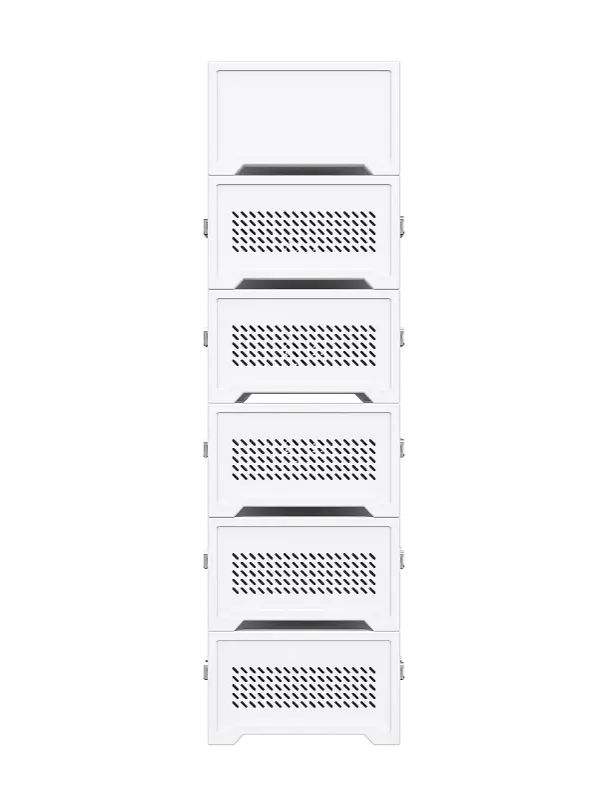

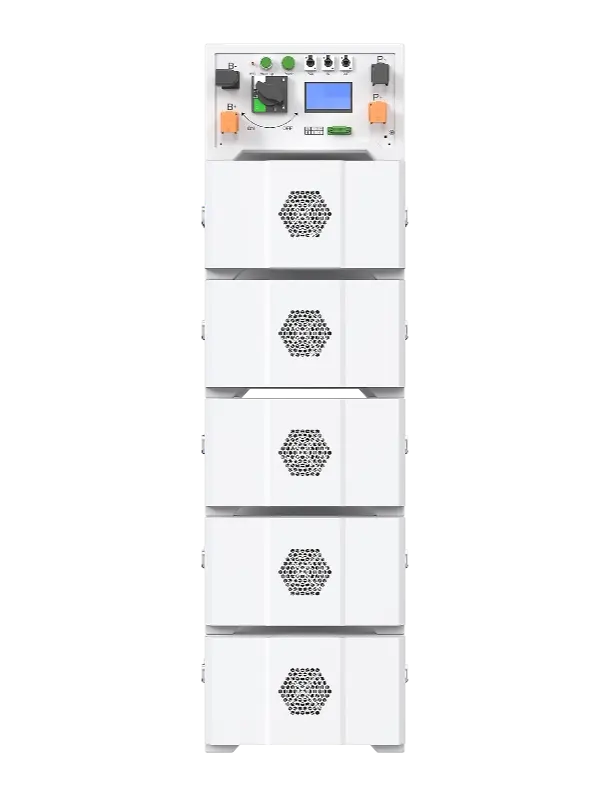

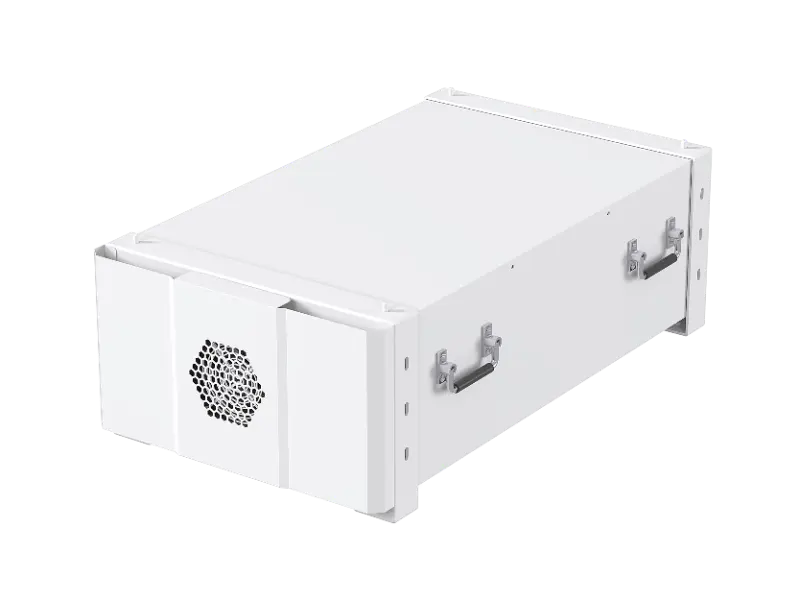

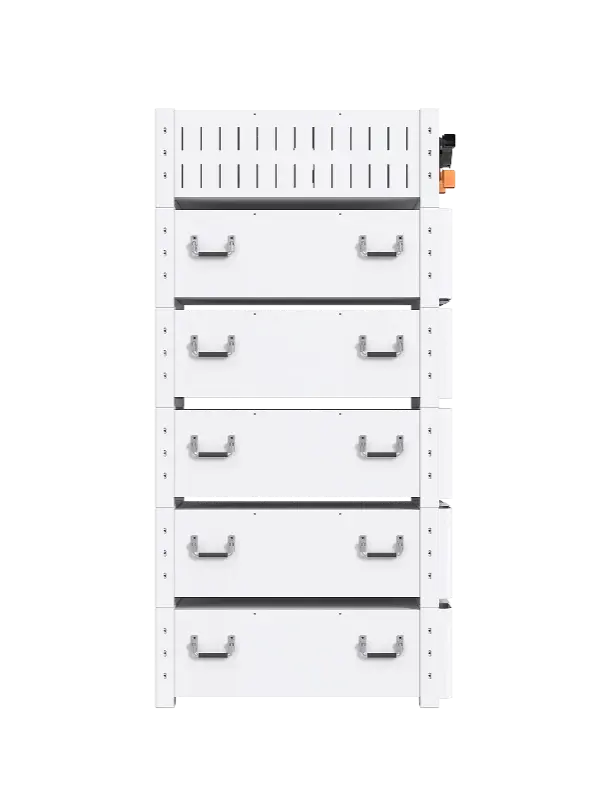

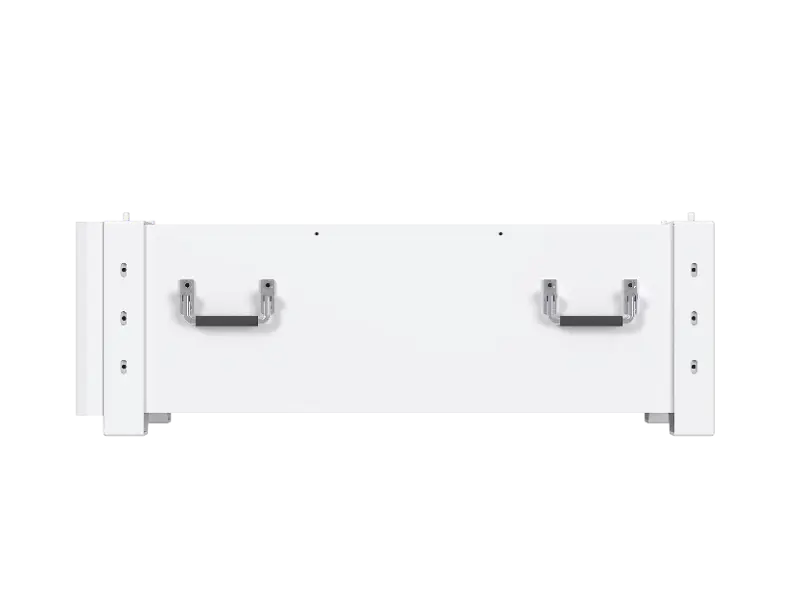

For scalable energy needs, each module supports 4 to 15 units in series, allowing flexible configuration from 48 kWh up to 241 kWh per cluster. The IP20 protection rating suits indoor installation environments, while the compact 798×478×278 mm footprint and optional rack‑mounting design save valuable space.

Whether for residential backup or commercial peak shaving, our GHS series offers a proven combination of durability, flexibility, and inverter compatibility—backed by stable supply and consistent quality.

Model number	GHS-314	GHS-200
Rated voltage (V)	51.2	51.2
Rated capacity (Ah)	314	314
Rated energy of battery (kWh)	16.08	14.34
Dimensions: Length * Width * Height (mm)	798478278	798478278
Weight (kg)	119.4	91.2
Recommended discharge current (A)	157	100
Recommended charging current (A)	157	140
Charging temperature (°C)	0~55	0~55
Discharge temperatur (°C)	-20~60	-20~60
Storage temperature (°C)	-10~40	-10~40
Operating humidity	10%-95%【No condensation】	10%-95%【No condensation】
Storage humidity	5%-95%【No condensation】	5%-95%【No condensation】
Multi-module configuration	4PC Series (Min) 15PC Series (Max)	4PC Series (Min) 15PC Series (Max)
Rated voltage (V)	153.6 768	204.8 768
Rated energy (kWh)	48.23 241.15	43 215.04
Operating voltage range (V)	179.2~230.48 672~864	179.2~230.48 672~864
Size: L * W * H (mm)	7984781367 79815001645	7984781367 79815001645
Weight (kg)	501.4 1814.8	484.6 1751.8
Port communication	CAN	CAN
IP rating	IP20	IP20
Compatible with inverter	Growatt,Solis Goodwe,Sol-Ark,SRNE,DEYE	Growatt,Solis Goodwe,Sol-Ark,SRNE,DEYE
Cycle life	> 6000 （0.5C@ 25°C，90% DOD)	> 6000 （0.5C@ 25°C，90% DOD)
Design lifespan (years)	15	15

Inquire Now

Product Features

01
HIGH CYCLE LIFE

Can achieve 6000 cycles at 90% state of charge, effectively reducing total cost of ownership.
02
FAST CHARGING SPEED

High charge and discharge efficiency, reducing equipment downtime and saving more time.
03
SAFER

Real-time monitoring of BMS for better system protection.
04
CAN/RS485 Dual Communication Redundancy

Equipped with standard CAN and RS485 dual communication interfaces, supporting redundant communication mode that automatically switches in case of one communication method failure, ensuring uninterrupted communication with PCS and EMS, thus enhancing system reliability.

Product Advantages

Portable and Mobile, Flexible Deployment

Easy to move, with installation location adjustable at any time.

Long Lifespan, High Return on Investment

6,000-8,000 cycle life, far exceeding the industry average.

All-Weather Reliable Operation

IP54 protection rating combined with a wide temperature range design ensures reliable performance in various harsh environments.

Safe and Reliable, Multi-Level Protection

The inherently safe Lithium Iron Phosphate (LiFePO₄) chemistry, coupled with BMS multi-level protection, ensures the safety of both equipment and personnel.

FAQ

About Zhongyue?

Zhongyue Energy Storage is located in Hefei, Anhui, a hub for new energy in China. We are a high-tech enterprise specializing in integrated photovoltaic and energy storage solutions. Integrating R&D, production, sales, and service, we are committed to providing global customers with safe, efficient, and stable energy storage products and system services. We are your reliable partner on the path towards energy independence and sustainable development.
How many modules can be connected in series? What is the maximum capacity?

The GHS series supports 4 to 15 modules in series. The cluster capacity can be flexibly configured from a minimum of 48.23 kWh up to a maximum of 241.15 kWh (for GHS-314) or 215.04 kWh (for GHS-200). You can start with a smaller configuration based on current energy needs and easily expand by adding more modules in the future without replacing the entire system.
What payment methods do you accept?

100%T/T in advance or 30% T/T deposit, and the balance 70% paid before shipment.
How can I trust you? What if you don't ship after payment?

We are a physical factory located in Hefei, China, legally registered and verifiable in the Chinese business registry. Our website is also ICP-licensed and officially recorded. To build trust, we can provide real-time factory video or video calls at any time.
