Energy Storage Battery Cabinet 50kW/50kWh | Outdoor IP54 Commercial ESS

50KWH

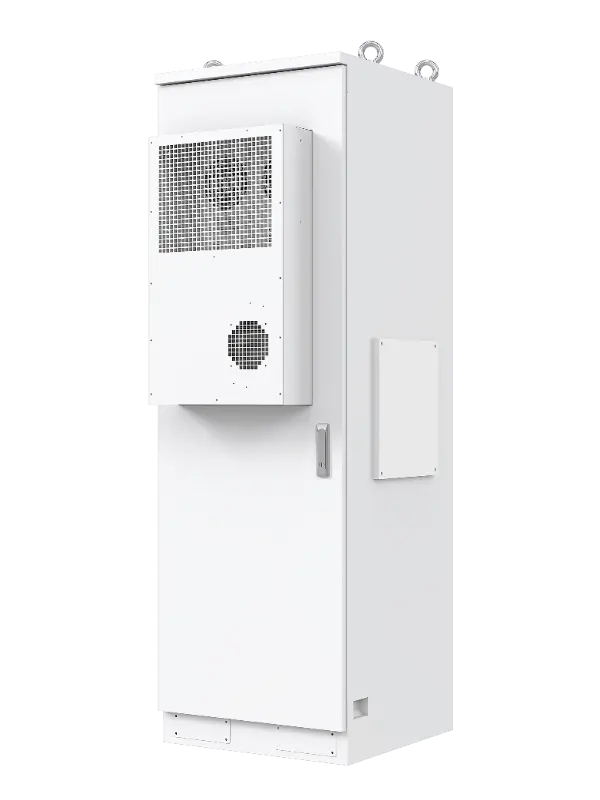

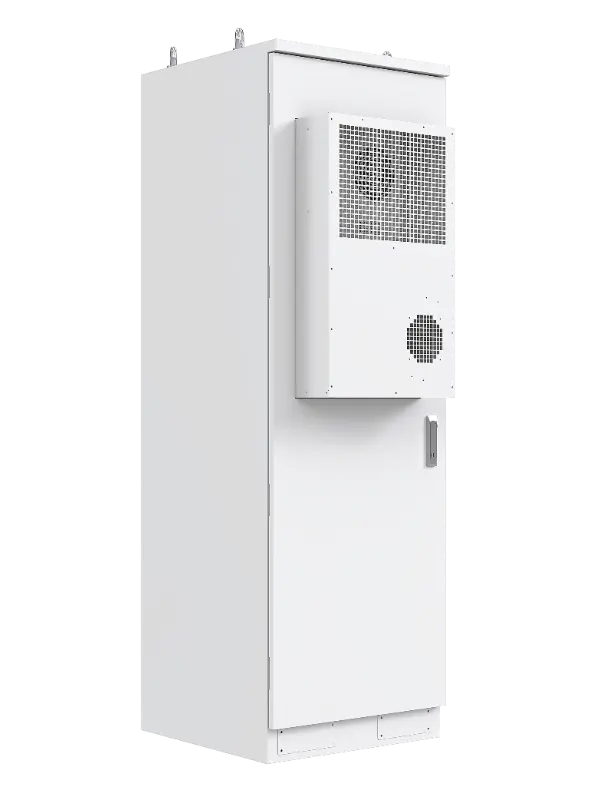

Outdoor IP54 Commercial Energy Storage Cabinet – 50kW / 50kWh

The GCB-E50 is a fully integrated outdoor energy storage cabinet designed for commercial and light industrial applications requiring reliable performance in challenging environments. With 50kW rated power and 50kWh usable energy, this all-in-one system features IP54 ingress protection, ensuring safe operation in outdoor settings with protection against dust and water splashes. The operating temperature range of -20°C to 50°C and integrated air cooling (with refrigeration, ventilation, and heating) maintain stable performance across diverse climates.

Built with LFP (lithium iron phosphate) battery cells for enhanced safety and long cycle life, the cabinet incorporates an integrated fire protection system for added security. System efficiency reaches ≥90%, with RS485 and CAN communication interfaces enabling seamless integration with energy management systems and inverters. The compact footprint (780×640×2000 mm) and 625 kg weight make it suitable for space-constrained commercial sites.

Whether for peak shaving, backup power, or renewable energy self-consumption optimization, the GCB-E50 delivers a robust, weather-resistant, and ready-to-deploy commercial energy storage solution.

Modelnumber:	GCB-E50
Type:	50KWH
Battery cell:	LFP100Ah
Battery pack :	51.2V100Ah
Rated voltage (V):	512V(10module series)
Rated energy (kWh):	50kWh
Voltage range (V):	448~576
Size: WDH (mm):	780•6402000
Weight (kg):	625
Level:	IP54
Operating temperature range (°C):	-20~50°C
Relative humidity:	0~95%
Altitude (m):	<2000
Cooling method :	Air cooling (refrigeration, ventilation, heating)
Noise:	≤75dB
System efficiency:	≥90%
Fire protection system :	Integrated
Fire protection system :	RS485, CAN

Inquire Now

Product Features

01
Advanced Battery Cell Technology

Utilizing Grade A LFP100Ah lithium iron phosphate battery cells with a 10-module series configuration (10S1P), rated voltage 512V, and total energy of 50kWh. The cells undergo strict voltage sorting with a voltage difference of ≤5mV and high internal resistance consistency, achieving a cycle life of over 6,000 cycles, ideal for light commercial and industrial applications.
02
Highly Integrated All-in-One Design

The battery cluster, 50kW PCS, BMS, EMS, and power distribution units are highly integrated into a compact 780*640*2000mm cabinet. A single cabinet operates independently without the need for complex external systems, making it particularly suitable for space-constrained locations such as street shops and small farms.
03
Intelligent Air Cooling Thermal Management System

Equipped with an intelligent forced-air cooling system integrating cooling, ventilation, and heating functions. It precisely controls the battery cell operating temperature, ensuring stable operation in ambient temperatures ranging from -20°C to 50°C, effectively mitigating thermal runaway risks.
04
Multiple Communication Interfaces

Standard with RS485 and CAN communication interfaces, compatible with mainstream inverter brands. It supports connection to building energy management systems for real-time data upload and remote monitoring.

Product Advantages

Ultra-Compact, Install Anywhere

Occupies only 0.5㎡ with IP54, install indoors/outdoors, no dedicated room needed.

Lightweight Design, Easy Handling

625kg, movable by forklift, flexible deployment.

Ultra-Low Self-Discharge, Worry-Free Storage

<3% monthly self-discharge, no sulfation, usable after 6 months.

Rapid Response, Plug-and-Play

Installation in hours, shortens project timeline, quick revenue.

FAQ

About Zhongyue?

Zhongyue Energy Storage is located in Hefei, Anhui, a hub for new energy in China. We are a high-tech enterprise specializing in integrated photovoltaic and energy storage solutions. Integrating R&D, production, sales, and service, we are committed to providing global customers with safe, efficient, and stable energy storage products and system services. We are your reliable partner on the path towards energy independence and sustainable development.
What commercial scenarios can a 50kWh capacity support? Is one cabinet sufficient for typical needs?

A 50kWh/50kW system is well-suited for: Peak shaving: Reducing demand charges for businesses with moderate peak loads (e.g., offices, retail stores, small factories). Backup power: Providing 1–2 hours of backup for critical loads (lighting, security, refrigeration) during outages. Solar self-consumption: Storing excess PV generation for a 50–100 kWp commercial solar system. For larger applications, multiple GCB-E50 cabinets can be paralleled to increase capacity and power. The modular design allows you to start with one cabinet and scale up as energy needs grow.
